Description

Structural characteristics, performance and scope of application

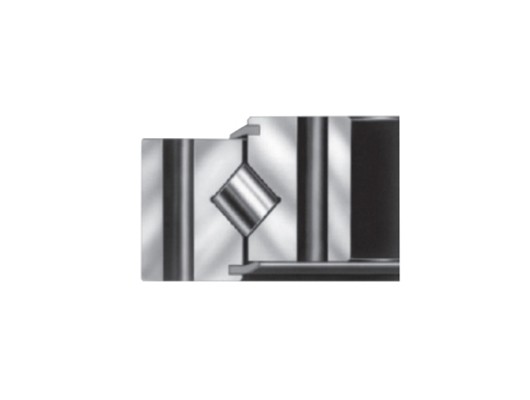

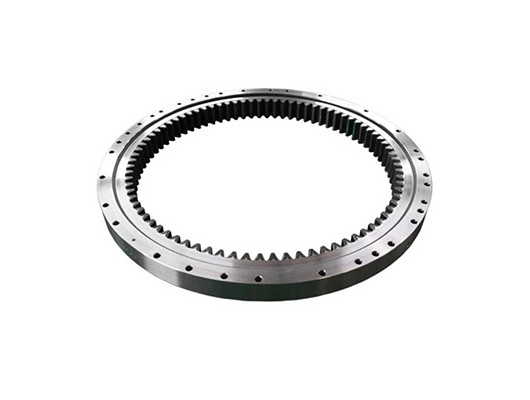

The single row cross roller slewing bearing is composed of two seat rings. It has compact structure, light weight, high manufacturing accuracy, small assembly gap and high requirement for installation accuracy. Rollers are 1:1 cross-arranged. It can bear axial force, overturning moment and large radial force at the same time. It is widely used in lifting transportation, construction machinery and opto-electronicproducts.

Technical Specifications

Single row cross roller slewing bearing (11 series)

Bearing type			Boundary dimensions			Mounting hole diameter				Structure dimensions					Gear parameters							Mass kg
Non-gear type	External gear type	Internal gear type	D	d	H	D1	D2	n	φ	D3	d1	H1	h	n3	m	Ext gear		Int gear		b	x
			mm			mm			mm	mm						Da mm	Z	da mm	Z	mm
110.25.500	111.25.500	113.25.500	602	398	75	566	434	20	18	498	502	65	10	4/M10X1	5	630	123	365	74	60	0.5	80
	112.25.500	114.25.500													6	630	120	360	62	60	0.5	80
110.25.560	111.25.560	113.25.560	662	458	75	626	494	20	18	558	562	65	10	4/M10X1	5	690	135	425	86	60	0.5	90
	112.25.560	114.25.560													6	690	112	426	72	60	0.5	90
110.25.630	111.25.630	113.25.630	732	528	75	696	564	24	18	628	632	65	10	4/M10X1	6	774	126	492	83	60	0.5	100
	112.25.630	114.30.630													8	776	94	488	62	60	0.5	100
110.25.710	111.25.710	113.25.710	812	608	75	776	644	24	18	708	712	65	10	4/M10X1	6	852	139	570	96	60	0.5	110
	112.25.710	114.25.710													8	856	104	568	72	60	0.5	110
110.28.800	111.28.800	113.28.800	922	678	82	878	722	30	22	798	802	72	10	6/M10X1	8	968	118	632	80	65	0.5	170
	112.28.800	114.28.800													10	970	94	630	64	65	0.5	170
110.28.900	111.28.900	113.28.900	1022	778	82	978	822	30	22	898	902	72	10	6/M10X1	8	1064	130	736	93	65	0.5	190
	112.28.900	114.28.900													10	1070	104	730	74	65	0.5	190
110.28.1000	111.28.1000	113.28.1000	1122	878	82	1078	922	36	22	998	1002	72	10	6/M10X1	10	1190	116	820	83	65	0.5	210
	112.28.1000	114.28.1000													12	1188	96	816	69	65	0.5	210
110.28.1120	111.28.1120	113.28.1120	1242	998	82	1198	1042	36	22	1118	1122	72	10	6/M10X1	10	1300	127	940	95	65	0.5	230
	112.28.1120	114.28.1120													12	1308	106	936	79	65	0.5	230
110.32.1250	111.32.1250	113.32.1250	1390	1110	91	1337	1163	40	26	1248	1252	81	10	6/M10X1	12	1452	118	1044	88	75	0.5	350
	112.32.1250	114.32.1250													14	1456	101	1036	75	75	0.5	350
110.32.1400	111.32.1400	113.32.1400	1540	1260	91	1487	1313	40	26	1398	1402	81	10	6/M10X1	12	1608	131	1188	100	75	0.5	400
	112.32.1400	114.32.1400													14	1610	112	1190	86	75	0.5	400
110.32.1600	111.32.1600	113.32.1600	1740	1460	91	1687	1513	45	26	1598	1602	81	10	8/M10X1	14	1820	127	1386	100	75	0.5	440
	112.32.1600	114.32.1600													16	1824	111	1376	87	75	0.5	440
110.32.1800	111.32.1800	113.32.1800	1940	1660	91	1887	1713	45	33	1798	1802	81	10	8/M10X1	14	2016	141	1568	113	75	0.5	500
	112.32.1800	114.32.1800													16	2016	123	1568	99	75	0.5	500
110.40.2000	111.40.2000	113.40.2000	2178	1825	112	2110	1891	48	33	1998	2002	100	12	8/M10X1	16	2272	139	1728	109	90	0.5	900
	112.40.2000	114.40.2000													18	2268	123	1728	97	90	0.5	900
110.40.2240	111.40.2240	113.40.2240	2418	2065	112	2350	2131	48	33	2237	2243	100	12	8/M10X1	16	2496	153	1984	125	90	0.5	1000
	112.40.2240	114.40.2240													18	2502	136	1980	111	90	0.5	1000
110.40.2500	111.40.2500	113.40.2500	2678	2325	112	2610	2391	56	33	2497	2503	100	12	8/M10X1	18	2772	151	2232	125	90	0.5	1100
	112.40.2500	114.40.2500													20	2780	136	2220	112	90	0.5	1100
110.40.2800	111.40.2800	113.40.2800	2978	2625	112	2910	2691	56	33	2797	2803	100	12	8/M10X1	18	3078	168	2520	141	90	0.5	1250
	112.40.2800	114.40.2800													20	3080	151	2520	127	90	0.5	1250
110.50.3150	111.50.3150	113.50.3150	3376	2922	134	3286	3014	56	45	3147	3153	122	12	8/M10X1	20	3480	171	2820	142	110	0.5	2150
	112.50.3150	114.50.3150													22	3476	155	2816	129	110	0.5	2150
110.50.3550	111.50.3550	113.50.3550	3776	3322	134	3686	3414	56	45	3547	3553	122	12	8/M10X1	20	3880	191	3220	162	110	0.5	2470
	112.50.3550	114.50.3550													22	3894	174	3212	147	110	0.5	2470
110.50.4000	111.50.4000	113.50.4000	4226	3772	134	4136	3864	60	45	3997	4003	122	12	10/M10X1	22	4334	194	3652	167	110	0.5	2800
	112.50.4000	114.50.4000													25	4350	171	3650	147	110	0.5	2800
110.50.4500	111.50.4500	113.50.4500	4726	4272	134	4636	4364	60	45	4497	4503	122	12	10/M10X1	22	4940	217	4158	190	110	0.5	3100
	112.50.4500	114.50.4500													25	4850	191	4150	167	110	0.5	3100
