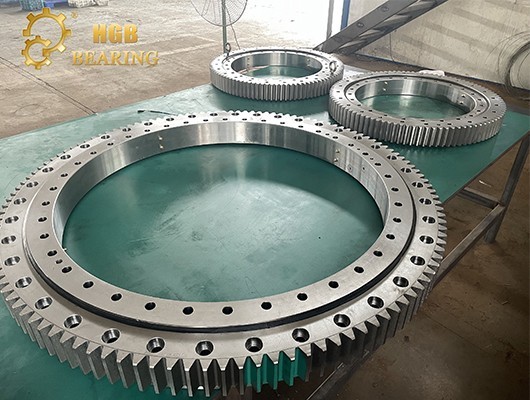

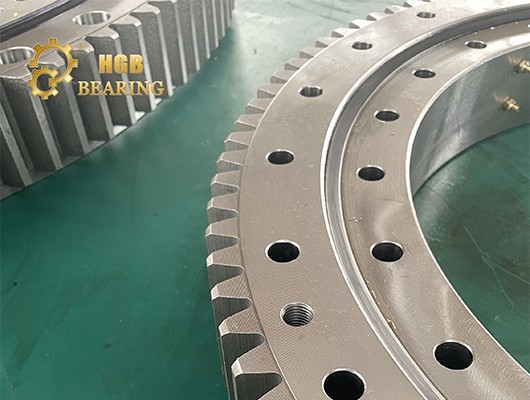

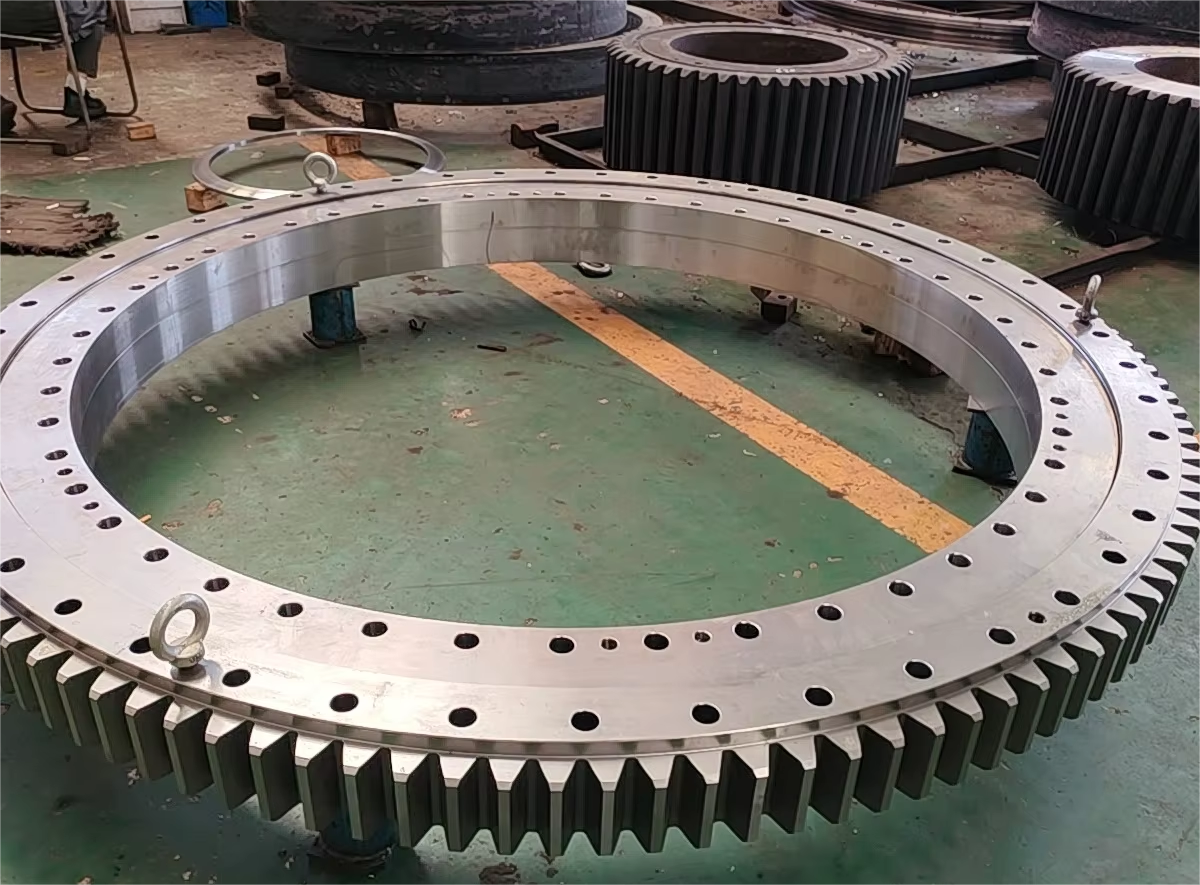

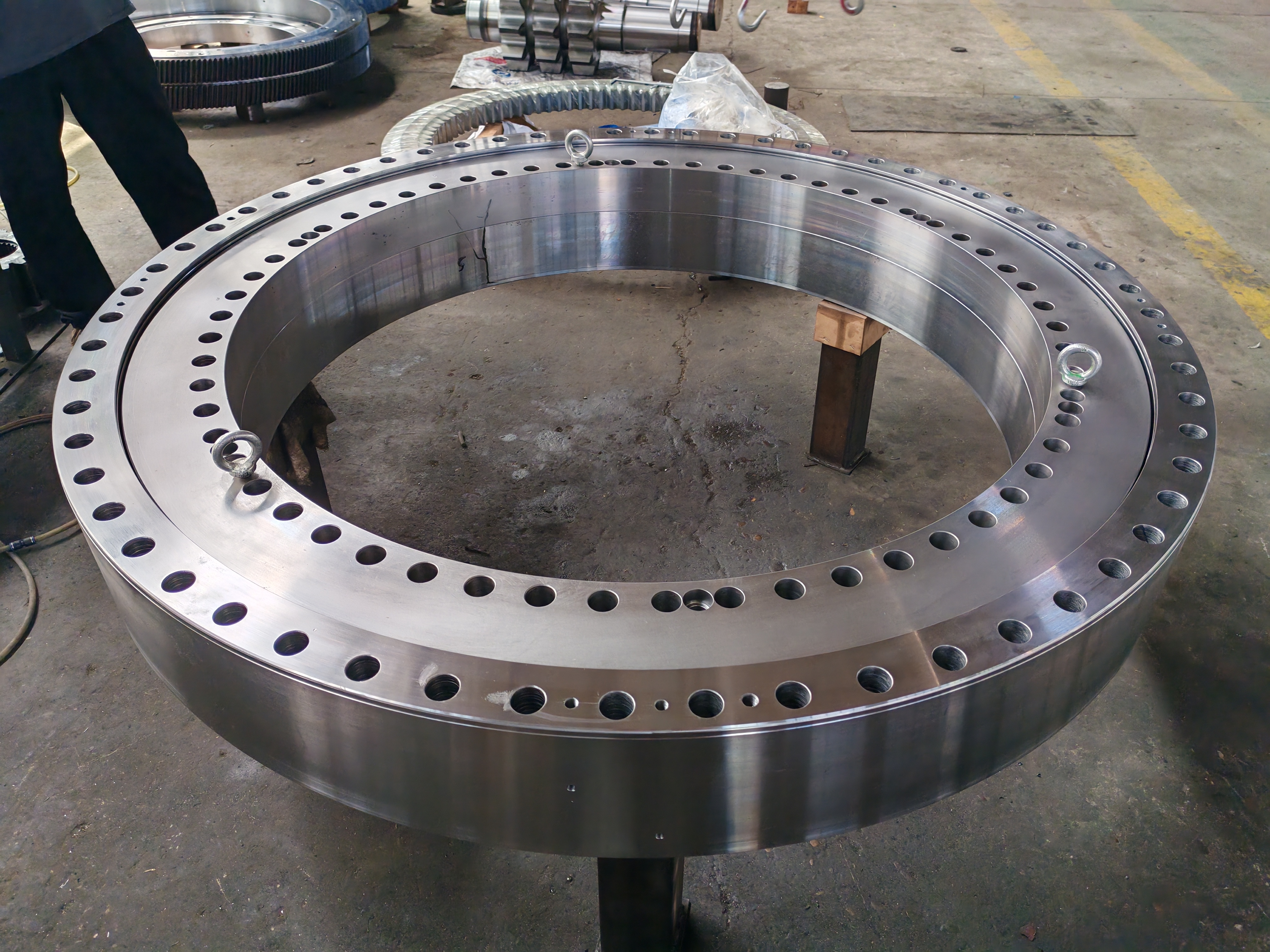

Double Row Ball Slewing Bearing

The bearing angle of the upper and lower arc raceway is 75 degrees. It can bear a great deal of axial force and overturning moment. When the radial force is greater than 0.1 times the axial force, the raceway must be specially designed. The axial and radial dimensions of the double row ball slewing bearing are relatively large and the structure is fastened.

Free Quote [email protected]

Advantages
Application

Description

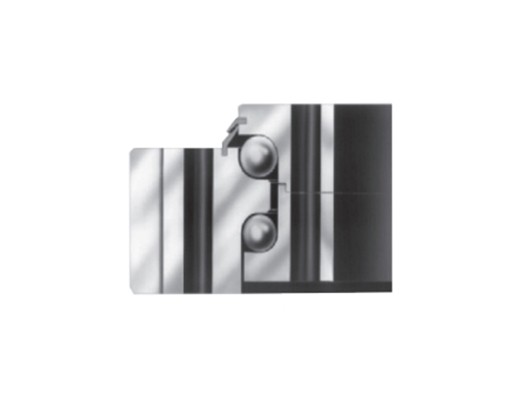

The double row ball slewing bearing has three seat rings. The steel balls and isolators can be directly arranged into the upper and lower raceways. According to the stress conditions, the upper and lower rows of steel balls with different diameters are arranged. This kind of open assembly is very convenient. The bearing angle of the upper and lower arc raceway is 75 degrees. It can bear a great deal of axial force and overturning moment. When the radial force is greater than 0.1 times the axial force, the raceway must be specially designed. The axial and radial dimensions of the double row ball slewing bearing are relatively large and the structure is fastened. It isespecially suitable for handling tower cranes, truck cranes and other loading machines that require medium or above diameters.

Technical Specifications

Double row ball slewing bearing (02 series)

Bearing type			Boundary dimensions			Mounting hole diameter				Structure dimensions					Gear parameters							Mass kg
Non gear type	External gear type	Internal gear type	D	d	H	D1	D2	n	φ	D3	d1	H1	h	n3	m	Ext gear		Int gear		b	x
			mm			mm			mm	mm						Da mm	Z	da mm	Z	mm
020.25.500	021.25.500	023.25.500	616	384	106	580	420	20	18	523	517	96	26	4/M10X1	5	645	126	355	72	60	0.5	100
	022.25.500	024.25.500								(483)	(477)				6	648	105	348	59	60	0.5	100
020.25.560	021.25.560	023.25.560	676	444	106	640	480	20	18	583	577	96	26	4/M10X1	5	705	138	415	84	60	0.5	115
	022.25.560	024.25.560								(543)	(537)				6	708	115	408	69	60	0.5	115
020.25.630	021.25.630	023.25.630	746	514	106	710	550	24	18	653	647	96	26	4/M10X1	6	792	129	480	81	60	0.5	130
	022.25.630	024.25.630								(613)	(607)				8	792	96	472	60	60	0.5	130
020.25.710	021.25.710	023.25.710	826	594	106	790	630	24	18	733	727	96	26	4/M10X1	6	864	141	558	94	60	0.5	140
	022.25.710	024.25.710								(693)	(687)				8	864	105	552	70	60	0.5	140
020.30.800	021.30.800	023.30.800	942	658	124	898	702	30	22	828	822	114	29	6/M10X1	8	984	120	616	78	80	0.5	200
	022.30.800	024.30.800								(778)	(771)				10	990	96	610	62	80	0.5	200
020.30.900	021.30.900	023.30.900	1042	758	124	998	802	30	22	928	922	114	29	6/M10X1	8	1088	133	712	90	80	0.5	250
	022.30.900	024.30.900								(878)	(871)				10	1090	106	710	72	80	0.5	250
020.30.1000	021.30.1000	023.30.1000	1142	858	124	1098	902	36	22	1028	1022	114	29	6/M10X1	10	1200	117	810	82	80	0.5	300
	022.30.1000	024.30.1000								(978)	(971)				12	1200	97	792	67	80	0.5	300
020.30.1120	021.30.1120	023.30.1120	1262	978	124	1218	1022	36	22	1148	1142	114	29	6/M10X1	10	1320	129	920	93	80	0.5	340
	022.30.1120	024.30.1120								(1098)	(1091)				12	1320	107	912	77	80	0.5	340
020.40.1250	021.40.1250	023.40.1250	1426	1074	160	1374	1126	40	26	1286	1282	150	39	6/M10X1	12	1500	122	1008	85	90	0.5	580
	022.40.1250	024.40.1250								(1218)	(1214)				14	1498	104	1008	73	90	0.5	580
020.40.1400	021.40.1400	023.40.1400	1576	1224	160	1524	1272	40	26	1436	1432	150	39	6/M10X1	12	1644	134	1152	97	90	0.5	650
	022.40.1400	024.40.1400								(1368)	(1364)				14	1652	115	1148	83	90	0.5	650
020.40.1600	021.40.1600	023.40.1600	1776	1424	160	1724	1476	45	26	1636	1632	150	39	8/M10X1	14	1848	129	1344	97	90	0.5	750
	022.40.1600	024.40.1600								(1568)	(1564)				16	1856	113	1344	85	90	0.5	750
020.40.1800	021.40.1800	023.40.1800	1976	1624	160	1924	1676	45	26	1836	1832	150	39	8/M10X1	14	2058	144	1540	111	90	0.5	820
	022.40.1800	024.40.1800								(1768)	(1764)				16	2064	126	1536	97	90	0.5	820
020.50.2000	021.50.2000	023.50.2000	2215	1785	190	2149	1851	48	33	2038	2032	178	47	8/M10X1	16	2304	141	1696	107	120	0.5	1150
	022.50.2000	024.50.2000								(1968)	(1962)				18	2304	125	1692	95	120	0.5	1150
020.50.2240	021.50.2240	023.50.2240	2455	2025	190	2389	2091	48	33	2278	2272	178	47	8/M10X1	16	2544	156	1936	122	120	0.5	1500
	022.50.2240	024.50.2240								(2208)	(2202)				18	2556	139	1926	108	120	0.5	1500
020.50.2500	021.50.2500	023.50.2500	2715	2285	190	2649	2351	56	33	2538	2532	178	47	8/M10X1	18	2804	153	2196	123	120	0.5	1700
	022.50.2500	024.50.2500								(2468)	(2462)				20	2820	138	2180	110	120	0.5	1700
020.50.2800	021.50.2800	023.50.2800	3015	2585	190	2949	2651	56	33	2838	2832	178	47	8/M10X1	18	3114	170	2484	139	120	0.5	1900
	022.50.2800	024.50.2800								(2768)	(2762)				20	3120	153	2480	125	120	0.5	1900
020.60.3150	021.60.3150	023.60.3150	3428	2872	226	3338	2962	56	45	3198	3192	214	56	8/M10X1	20	3540	174	2760	139	150	0.5	3300
	022.60.3150	024.60.3150								(3108)	(3102)				22	3542	158	2750	126	150	0.5	3300
020.60.3550	021.60.3550	023.60.3550	3828	3272	226	3738	3362	56	45	3598	3592	214	56	8/M10X1	20	3940	194	3160	159	150	0.5	3700
	022.60.3550	024.60.3550								(3508)	(3502)				22	3938	176	3168	145	150	0.5	3700
020.60.4000	021.60.4000	023.60.4000	4278	3722	226	4188	3812	60	45	4048	4042	214	56	10/M10X1	22	4400	197	3608	165	150	0.5	4200
	022.60.4000	024.60.4000								(3958)	(3952)				25	4400	173	3600	145	150	0.5	4200
020.60.4500	021.60.4500	023.60.4500	4778	4222	226	4688	4312	60	45	4548	4542	214	56	10/M10X1	22	4884	219	4114	188	150	0.5	4700
	022.60.4500	024.60.4500								(4458)	(4452)				25	4900	193	4100	165	150	0.5	4700
