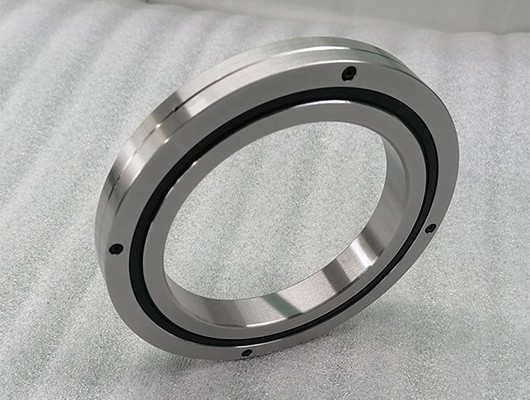

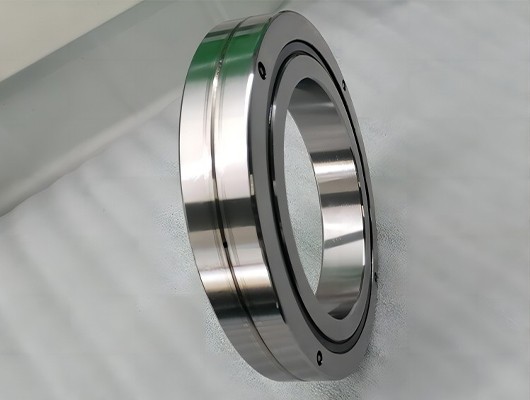

SX standard type is a bearing similar to RB standard type. The two separable outer rings are connected by locking ring.
Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.
SX series (integral inner ring, split outer ring, ultra-thin), under the same shaft diameter, this type has a smaller sectional dimension than the RB series. Due to the ultra-thin design, the outer ring and inner ring have no mounting holes , It needs the flange and the support seat during installation, which is suitable for applications where the inner ring rotates.
(Separable Outer Ring Type for Inner Ring Rotation)
LYHGB Crossed roller bearings are lightweight, compact bearings with thinnest possible inner and outer rings with high rigidity, because of its vertical arrangement of cylindrical rollers with a 90°V groove through the separate spacers in the deep groove rolling surface. This special design allows just one bearing to carry loads in all directions including radial, axial and moment loads.

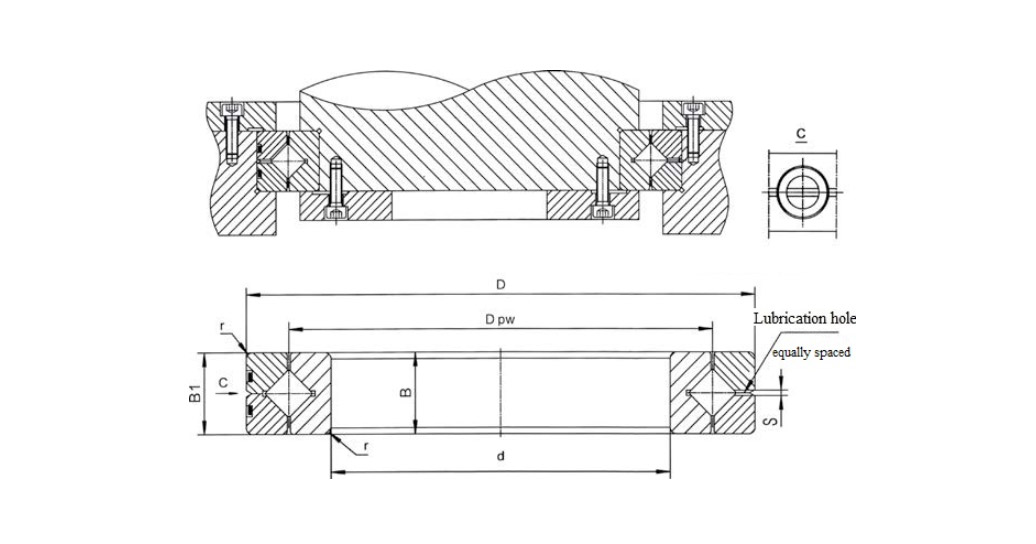

TYPE | Inner diameter | Outer diameter | Pitch diameter | Height | Chamfer | Basic rated load(Axial) | Basic rated load(Radial) | Weight | ||
d | D | Dpw | B | r | Ca Kn | Coa Kn | Cr Kn | Cor Kn | KG | |
SX011814 | 70 | 90 | 80 | 10 | 0.6 | 18 | 60 | 12 | 30 | 0.3 |
SX011818 | 90 | 115 | 102 | 13 | 1 | 26 | 96 | 17 | 47 | 0.4 |
SX011820 | 100 | 125 | 112 | 13 | 1 | 28 | 106 | 18 | 52 | 0.5 |
SX011824 | 120 | 150 | 135 | 16 | 1 | 41 | 153 | 26 | 75 | 0.8 |
SX011828 | 140 | 175 | 157 | 18 | 1.1 | 64 | 237 | 41 | 116 | 1.1 |
SX011832 | 160 | 200 | 180 | 20 | 1.1 | 69 | 272 | 44 | 133 | 1.7 |
SX011836 | 180 | 225 | 202 | 22 | 1.1 | 98 | 381 | 63 | 187 | 2.3 |
SX011840 | 200 | 250 | 225 | 24 | 1.5 | 106 | 425 | 68 | 208 | 3.1 |
SX011848 | 240 | 300 | 270 | 28 | 2 | 149 | 612 | 95 | 300 | 5.3 |
SX011860 | 300 | 380 | 340 | 38 | 2.1 | 245 | 1027 | 156 | 504 | 12 |
SX011868 | 340 | 420 | 380 | 38 | 2.1 | 265 | 1148 | 167 | 563 | 13.5 |
SX011880 | 400 | 500 | 450 | 46 | 2.1 | 385 | 1699 | 244 | 833 | 24 |
SX0118/500 | 500 | 620 | 560 | 56 | 3 | 560 | 2538 | 355 | 1244 | 44 |
